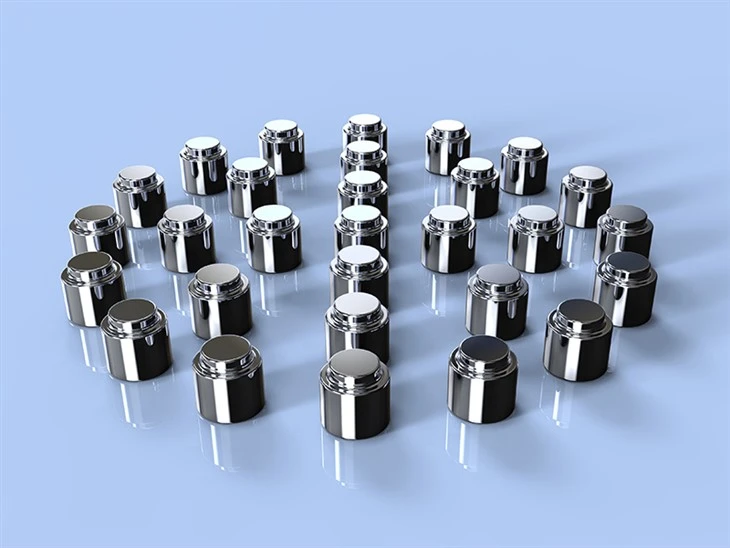

Name: China Game Console Magnet Manufacturers Suppliers Factory - Customized Game Console Magnet - Guomai
Brand: Guomai
SKU: 305412591

Basic Information of the Game Console Magnet

Material	Sintered Neodymium-iron-boron
Shape	Customized
Size	Customized
Grade	Customized
Coating	Ni-Cu-Ni, Zn, Epoxy(all colors), Gold, Silver, Chromium or Customized
Magnetization Direction	Customized
Package	Vacuum Bag + Carton + Pallet or customized

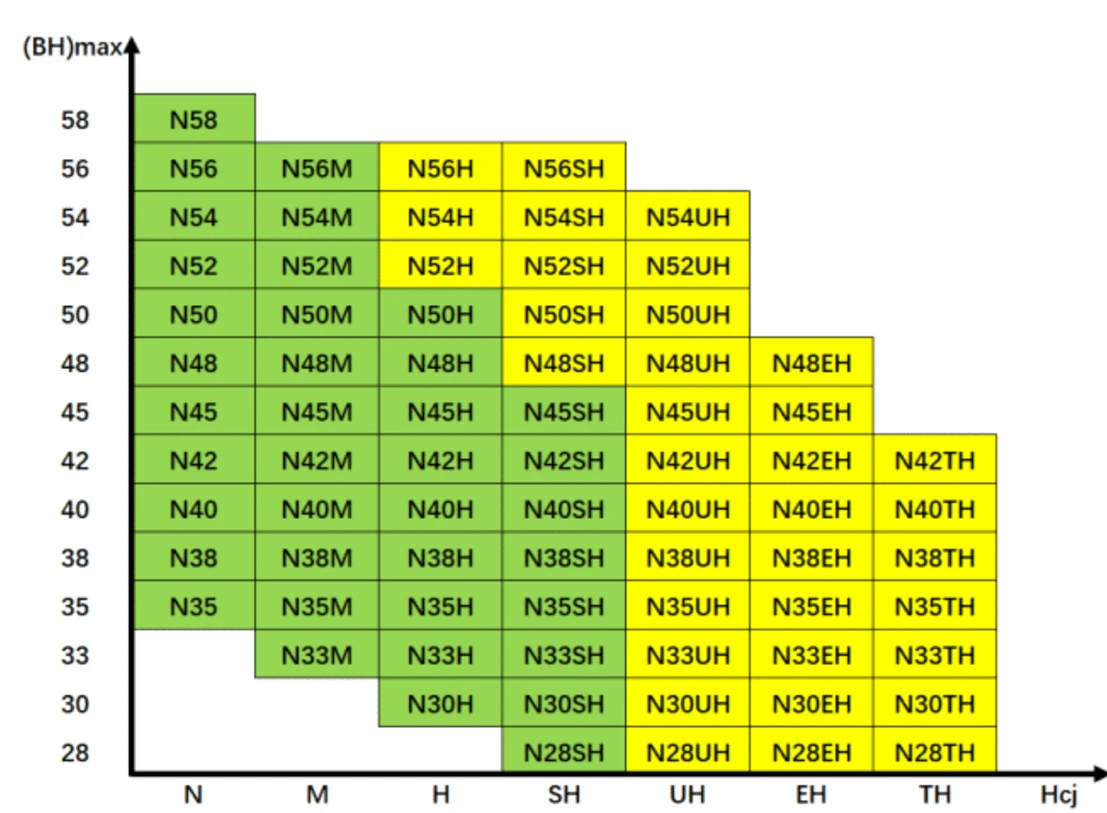

All Grades Matrix Graph

product-94-54 Free of Export Control Substances

product-1107-813

Our Advantages

Provide professional consulting and solutions for your game console magnet solution. Based on your specific application scenario, recommend the optimal magnet material type and surface treatment process. Provide game console magnet sample testing services to ensure the feasibility of the solution. Assist in formulating production and assembly process specifications, along with a complete quality inspection plan. Offer ongoing technical support and solution iterative optimization to ensure long-term stability and cost-effectiveness.

We offer comprehensive customisation services for sintered NdFeB magnets, covering flexible adjustments of all parameters including magnetic performance, operating temperature, coercivity grade, dimensions, tolerances, coating, and magnetisation pattern. You only need to provide structural drawings or design requirements, and we will leverage our mature process routes and mass‑production experience to develop a complete and actionable production process plan for you. From raw material composition, sintering process parameters, and machining paths, to surface treatment (e.g., zinc plating, nickel plating, epoxy resin) and magnetisation scheme, we will thoroughly optimise every step during the sample validation phase. Once confirmed, we will further deliver a full mass‑production solution tailored for large‑scale manufacturing, including process routing cards, quality control points, and inspection specifications. This ensures consistent product performance and stable delivery, helping you achieve a seamless transition from design to volume application.

We have extensive experience in the development and mass production of game console magnets for game consoles. Based on multiple successfully delivered project cases, we have gained an in‑depth understanding of the specific requirements for magnets in game consoles – including high consistency, low noise, demagnetization resistance, impact stability, and strict reliability testing standards. Thanks to this, we can fully leverage our past experience to provide you with truly targeted process solutions and design optimization recommendations: from magnetic performance grade selection, matching of operating temperature and coercivity, to magnetization pattern design, dimensional tolerance control, and surface treatment processes. This helps you avoid potential risks in mass production in advance, shorten product development and validation cycles, and ensure that the magnets maintain stable and reliable performance under the demanding operating conditions of game consoles.

Characteristics Of Sintered NdFeB Magnet
Properties		Br				Hcb		Hcj		(BH)max
NO.	Grade	kGs		T		kOe	kA/m	kOe	kA/m	MGOe		kJ/m³
NO.	Grade	Max.	Min.	Max.	Min.	kOe	kA/m	kOe	kA/m	Max.	Min.	Max.	Min.
1	N35	12.5	11.8	1.25	1.18	≥10.8	≥860	≥12	≥955	38	33	302	263
2	N38	13.0	12.3	1.30	1.23	≥10.8	≥860	≥12	≥955	41	36	326	286
3	N40	13.2	12.6	1.32	1.26	≥10.8	≥860	≥12	≥955	42	38	334	302
4	N42	13.5	13.0	1.35	1.30	≥10.8	≥860	≥12	≥955	44	40	350	318
5	N45	13.8	13.2	1.38	1.32	≥10.8	≥860	≥12	≥955	46	42	366	334
6	N48	14.3	13.7	1.43	1.37	≥10.5	≥836	≥11	≥875	49	45	390	358
7	N50	14.6	13.9	1.46	1.39	≥10.5	≥836	≥11	≥875	51	47	406	374
8	N52	14.8	14.2	1.48	1.42	≥10.5	≥836	≥11	≥875	53	49	422	390
9	N54	15.0	14.4	1.50	1.44	≥10.5	≥836	≥11	≥875	55	50	438	398
10	N56	15.2	14.6	1.52	1.46	≥9.0	≥716	≥10	≥796	56	51	446	406
11	N35M	12.5	11.8	1.25	1.18	≥11.0	≥875	≥14	≥1114	38	33	302	263
12	N38M	13.0	12.3	1.30	1.23	≥11.5	≥916	≥14	≥1114	41	36	326	287
13	N40M	13.2	12.6	1.32	1.26	≥11.8	≥939	≥14	≥1114	43	38	342	302
14	N42M	13.5	13.0	1.35	1.30	≥12.0	≥955	≥14	≥1114	45	40	358	318
15	N45M	13.8	13.2	1.38	1.32	≥12.2	≥971	≥14	≥1114	47	42	374	334
16	N48M	14.3	13.7	1.43	1.37	≥12.5	≥995	≥14	≥1114	50	45	398	358
17	N50M	14.6	13.9	1.46	1.39	≥12.5	≥995	≥13	≥1035	52	47	414	374
18	N52M	14.8	14.2	1.48	1.42	≥12.5	≥995	≥13	≥1035	53	49	422	390
19	N54M	15.0	14.4	1.50	1.44	≥12.5	≥995	≥13	≥1035	55	50	438	398
20	N56M	15.2	14.6	1.52	1.46	≥12.5	≥995	≥13	≥1035	56	51	446	406
21	N35H	12.5	11.8	1.25	1.18	≥11.0	≥875	≥17	≥1353	38	33	302	263
22	N38H	13.0	12.3	1.30	1.23	≥11.5	≥916	≥17	≥1353	41	36	326	287
23	N40H	13.2	12.6	1.32	1.26	≥11.8	≥939	≥17	≥1353	43	38	342	302
24	N44H	13.7	13.0	1.37	1.30	≥12.1	≥963	≥16	≥1273	46	41	366	326
25	N46H	14.0	13.4	1.40	1.34	≥12.5	≥995	≥16	≥1273	48	43	382	342
26	N48H	14.2	13.6	1.42	1.36	≥12.7	≥1011	≥16	≥1273	50	45	398	358
27	N50H	14.4	13.8	1.44	1.38	≥12.9	≥1026	≥16	≥1273	51	46	406	366
28	N52H	14.6	14.0	1.46	1.40	≥13.0	≥1035	≥16	≥1273	53	47	422	374
29	N54H	14.8	14.2	1.48	1.42	≥13.2	≥1051	≥16	≥1273	54	49	430	390
30	N35SH	12.5	11.8	1.25	1.18	≥11.1	≥883	≥20	≥1592	38	33	302	263
31	N38SH	13.0	12.3	1.30	1.23	≥11.6	≥923	≥20	≥1592	41	36	326	287
32	N40SH	13.2	12.6	1.32	1.26	≥11.8	≥939	≥20	≥1592	43	38	342	302
33	N42SH	13.4	12.8	1.34	1.28	≥12.0	≥955	≥19	≥1512	44	39	350	310
34	N45SH	13.8	13.2	1.38	1.32	≥12.4	≥987	≥19	≥1512	47	42	374	334
35	N48SH	14.2	13.6	1.42	1.36	≥12.7	≥1011	≥19	≥1512	50	45	398	358
36	N50SH	14.4	13.8	1.44	1.38	≥13.0	≥1035	≥19	≥1512	51	46	406	366
37	N52SH	14.6	14.0	1.46	1.40	≥13.3	≥1059	≥19	≥1512	53	47	422	374
38	N33UH	12.2	11.4	1.22	1.14	≥10.8	≥859	≥25	≥1990	36	31	287	247
39	N35UH	12.5	11.8	1.25	1.18	≥11.2	≥891	≥25	≥1990	38	33	302	263
40	N38UH	12.8	12.2	1.28	1.22	≥11.6	≥923	≥25	≥1990	40	36	318	287
41	N40UH	13.2	12.6	1.32	1.26	≥12.0	≥955	≥25	≥1990	42	38	334	302
42	N42UH	13.5	13.0	1.35	1.30	≥12.0	≥955	≥25	≥1990	44	40	350	318
43	N45UH	13.8	13.2	1.38	1.32	≥12.4	≥987	≥25	≥1990	47	42	374	334
44	N48UH	14.1	13.6	1.41	1.36	≥12.7	≥1011	≥24	≥1911	50	44	398	350
45	N30EH	11.7	10.9	1.17	1.09	≥10.3	≥820	≥30	≥2388	33	28	263	223
46	N33EH	12.0	11.4	1.20	1.14	≥10.8	≥859	≥30	≥2388	35	31	279	247
47	N35EH	12.3	11.7	1.23	1.17	≥11.1	≥883	≥30	≥2388	37	33	295	263
48	N38EH	12.8	12.2	1.28	1.22	≥11.6	≥923	≥30	≥2388	40	36	318	287
49	N40EH	13.1	12.5	1.31	1.25	≥11.8	≥939	≥30	≥2388	42	37	334	295
50	N44EH	13.5	13.0	1.35	1.10	≥12.3	≥979	≥29	≥2308	46	11	366	326
51	N46EH	13.8	13.3	1.38	1.33	≥12.6	≥1003	≥29	≥2308	47	42	374	334
52	N28EHS	11.3	10.5	1.13	1.05	≥10.0	≥780	≥35	≥2786	31	26	247	207
53	N30EHS	11.7	10.9	1.17	1.09	≥10.3	≥820	≥35	≥2786	33	28	263	223
54	N33EHS	12.0	11.4	1.20	1.14	≥10.8	≥859	≥35	≥2786	36	31	287	247
55	N35EHS	12.3	11.7	1.23	1.17	≥11.1	≥883	≥35	≥2786	37	33	295	263
56	N38EHS	12.8	12.2	1.28	1.22	≥11.6	≥923	≥34	≥2706	40	36	318	286
57	N40EHS	13.1	12.5	1.31	1.25	≥11.8	≥939	≥34	≥2706	42	37	334	295
58	N42EHS	13.3	12.8	1.33	1.28	≥12.0	≥955	≥34	≥2706	44	39	350	310
